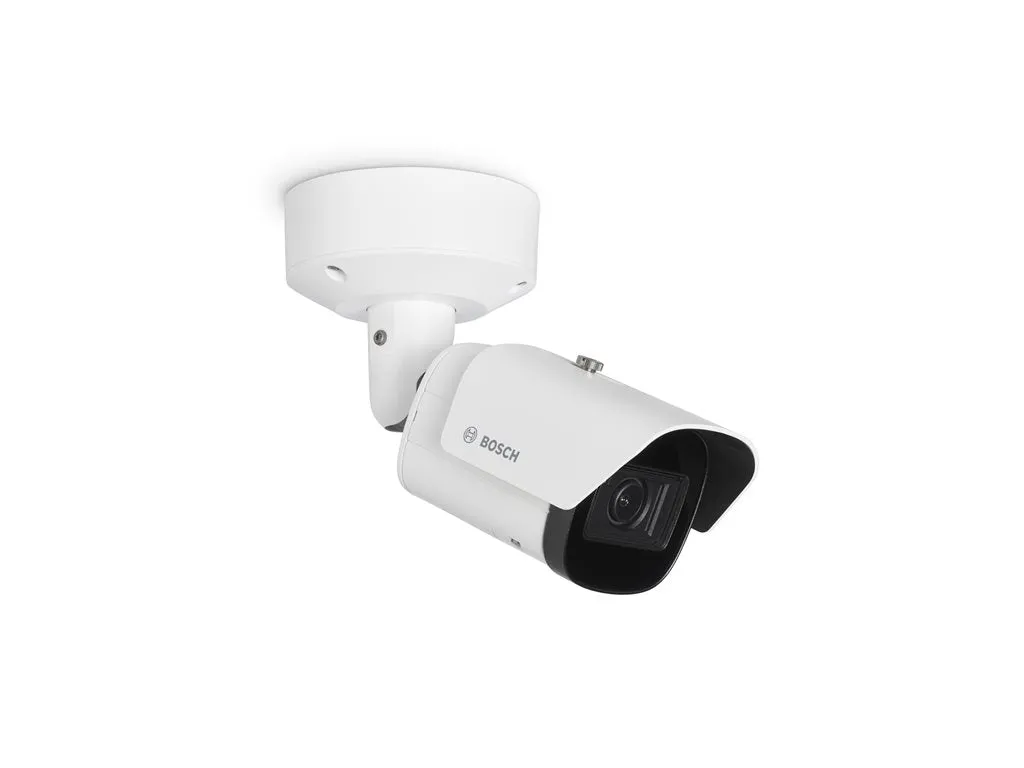

Bosch DINION 5100i IR NBE-5704-AL - Network surveillance camera - bullet - outdoor - dust resistant / water resistant / vandal resistant - color (Day&Night) - 8 MP - 3840 x 2160 - auto iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / AC 24 V / PoE Plus Class 3

• H.265 high-efficiency video encoding
  The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 has become the new compression standard of choice for IP video surveillance systems.
• Intelligent Video Analytics Pro (IVA Pro)
  The camera comes with IVA Pro Buildings preinstalled and brings highly reliable deep-learning based detection and tracking of persons and vehicles to scenes ranging from sterile zones to crowded and congested. Being extremely resistant to false triggers caused by challenging environments with rain, wind (moving trees), snow, hail, and water reflections as well as shadows and bugs, it reliable detects, tracks, and classifies objects. A smart set of alarm and counter rules allows to alert you when predefined alarms are triggered, and to forensically search with high efficiently though recordings. Configuration effort is minimized and made easy by removing the need for calibration.
• Two-way audio
  Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output.
• DORI coverage
  DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area.
• Scene modes
  Multiple configurable modes are provided with excellent settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as sodium lighting, fast moving objects, or dark environments. Resists rain, dust, and tampering with reliable operation across a wide temperature range The camera is suitable for outdoor usage. The camera can operate in a wide ambient temperature range between -40°C up to 55°C (-40°F up to 131°F). The robust design of the camera is rated to IP66/67, NEMA 4X, and IK10 standards, safeguarding the camera against rain and dust while also offering protection against vandalism and tampering.
• Easy installation
  The DINION 5100i IR uses the proven 3-step installation concept. The mounting plate has multiple hole patterns for installation on electrical boxes (4-inch square and double gang) and on the Bosch Universal Accessories. The back box can be attached with a simple rotate and click. All wires can be connected in the back box. Power can be supplied through Power-over-Ethernet. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost effective, as cameras do not require a local power source. The AVF (Automatic Varifocal) feature makes it easy for installers to adjust zoom position without opening the camera. The automatic motorized zoom/focus adjustment with 1:1 pixel mapping ensures the camera is always accurately focused.
• Data security
  Special measures have been put in place to ensure a high level of security for device access and data transport. The three-level password protection with security recommendations allows users to customize device access. Web browser access can be protected using HTTPS and firmware updates can also be protected with authenticated secure uploads. The cameras have built-in Secure Element (SE) hardware providing main Trusted Platform Module (TPM) functionality to ensure the highest levels of data security and privacy protection. Together with Public Key Infrastructure (PKI) support, superior protection from malicious attacks is guaranteed.
• Edge recording
  Insert a memory card into the card slot to store enough of local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, and extends the effective life of the memory card. It has advanced edge recording providing a reliable storage solution possible due to the combination of these functions: industrial SD card support allows for extreme lifetime; health monitoring of industrial SD cards provide early service indications.
• High Dynamic Range
  The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide standardized measurements, which can be used to compare different cameras.
• System Integration and ONVIF conformance
  The camera conforms to the ONVIF Profile S, ONVIF Profile G, ONVIF Profile T, and ONVIF Profile M specifications. For H.265 configuration, the camera supports Media Service 2, which is part of ONVIF Profile T. Compliance with these standards guarantees interoperability between network video products regardless of manufacturer. Third-party integrators can easily access the internal feature set of the camera for integration into large projects.
• IR illumination
  The device offers integrated intelligent infrared (IR) capability, on top of adaptive power based on-the-scene content. The IR range covers a distance of up to 60 m (197 ft). The IR coverage is always optimized for the scene in order to avoid over-exposure of objects that are close to the device.

The cameras are versatile and professional surveillance cameras for outdoor monitoring. They deliver exceptional image quality, starlight performance and High Dynamic Range at resolution up to 4K ultra HD for highly detailed image for reliable outdoor detection.
Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.
The camera offers a 1/2.8" sensor and HDR technology at 8 MP resolution with a built-in intelligent infrared illuminator that provides high performance in dark environments. The robust design and stable housing with sunshield prevent overexposure in certain periods of the day and help to provide optimal image stability.

• High resolution for highly detailed image
• Starlight camera technology with excellent lowlight performance
• IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
• High Dynamic Range to see every detail in both bright and dark areas of the scene
• Built-in intelligent IR illuminator with up to 60 m (197 ft) viewing distance

What's in the Box:

• Bosch DINION 5100i IR NBE-5704-AL
• Desiccant, 2-pin terminal block, allen key, 3 installer UX labels, RJ-45 guider, mount plate, 8-pin terminal block, 2 rubbers for conduit
